The BrakeCheck is our portable, DVSA-approved brake tester and a DVSA MTS (MOT Testing System) approved device.

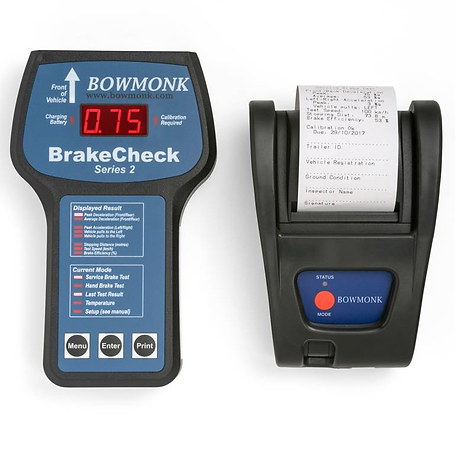

The Bowmonk BrakeCheck is a fully self-contained, user-friendly, portable brake tester, used by workshops, government traffic authorities and Authorised Test Facilities (ATF's) around the world to record the braking efficiency and percentage of braking imbalance of all classes of vehicle from a Motorcycle to an HGV, in a matter of minutes.



The BrakeCheck is also approved by the DVSA for performing the quarterly voluntary brake tests now required as part of the interim safety inspections.

The Bowmonk BrakeCheck determines braking efficiency of both the Service Brake (Foot Brake) and Hand Brake by measuring the rate of deceleration from a speed of around 20 mph until the vehicle comes to rest.  BrakeCheck is available in a variant which can also measure the brake efficiency of the Secondary Brake.

Designed to be self-compensating, the instrument will indicate on the LED screen when it is positioned level enough to perform a brake test, with a generous tolerance to ensure that this is easy to achieve.

The unit indicates whether the vehicle pulls to the left or right during braking.

Test results can be viewed on the display panel or downloaded to a PC for saving or printing.  A printed report can also be produced at the time of testing using the portable infra-red printer.

The device operates on a rechargeable lithium-ion battery pack and will power-down after a period of inactivity to conserve energy.

As an optional feature, BrakeCheck can include a built-in GPS receiver, with the latitude and longitude of the brake test location being printed on the receipt.
